電機引接線
JYJ電機引接線
JYJ125 JYJ155 JYJ155 — 1140V |
125℃/155℃輻照交聯阻燃聚烯烴絕緣電機引接線(環保) |
產品說明: ● 額定溫度:125℃,155℃ ● 額定電壓:660V/750V/1140V ● 參考標準:JB/T 6213 ● 導體使用單支或絞合0.5-120mm2鍍錫或裸銅 ● XLPE絕緣,符合ROHS環保標準 ● 絕緣厚度均勻、易裁線、易剝皮 ● 用于B級,F(xiàn)級電機引接線 |
PRODUCT DESCRIPTION ● Rated temperature: 125℃,155℃ ● Rated voltage: 660V/750V/1140V ● Reference standard: JB/T 6213 ● Solid or standard , tinned or bare copper conduct or 0.5-120mm2 ● XLPE insulation ,comply with ROHS environmental standard ● Uniform insulation thickness to ensure easy stripping and cutting ● For used leads wiring of B, F insulation class motor |
印字 MARKING JYJ125 ()mm2 125℃ 660V --CHANG ZHOU PAINUI — LF JYJ155 ()mm2 155℃ 750V --CHANG ZHOU PAINUI — LF JYJ155-1140V ()mm2 155℃ 750V --CHANG ZHOU PAINUI — LF |

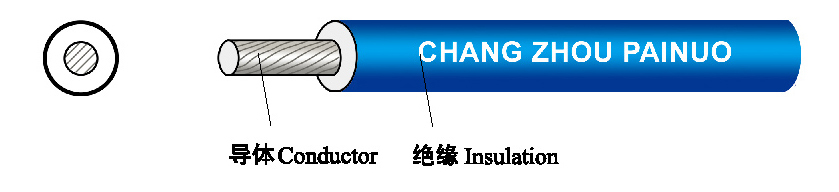

產品結構 CABLE CONSTRUCT |
導體 CONDUCTOR |
絕緣 INSULATION |
MAX導體電阻 MAX.COND. RESISTANCE (Ω/Km,20℃) |
25℃時空氣敷設載流量25℃CAIRLAYING CARRYING CURRENT (A) |
標準長度 STANDARD PUT-UP (M/COIL) |
|||
規格 AWG |
構造 CONSTRUCTION |
外徑 DIA. |
厚度 THICKNESS |
標稱外徑 O.D. |
|||
(No./mm) | (mm) | (mm) | (mm) | ||||
0.5 | 16/0.2 | 0.95 | 0.6 | 2.2±0.1 | 40.1 | 15 | 200 |
0.75 | 24/0.2 | 1.25 | 2.50±0.1 | 26.7 | 17 | ||
1.0 | 32/0.2 | 1.35 | 2.60±0.1 | 20.0 | 19 | ||
1.5 | 30/0.25 | 1.65 | 0.7 | 3.15±0.1 | 13.7 | 24 | 100 |
2.5 | 49/0.25 | 2.1 | 3.65±0.1 | 8.21 | 33 | ||
4.0 | 56/0.3 | 2.7 | 4.2±0.1 | 5.09 | 45 | ||
6.0 | 84/0.3 | 3.3 | 0.8 | 5.1±0.1 | 3.39 | 58 | |
10 | 84/0.4 | 4.7 | 6.6±0.2 | 1.95 | 80 | ||
16 | 126/0.4 | 5.8 | 1.0 | 8.2±0.2 | 1.24 | 107 | |
25 | 196/0.4 | 7.4 | 9.5±0.2 | 0.795 | 138 | ||
35 | 276/0.4 | 8.6 | 11.1±0.2 | 0.565 | 171 | ||
50 | 396/0.4 | 10.4 | 1.2 | 13.2±0.3 | 0.393 | 210 | |
70 | 360/0.5 | 12.5 | 15.0±0.5 | 0.277 | 269 | 50 | |
95 | 475/0.5 | 15.3 | 1.4 | 18.50±0.5 | 0.21 | 328 | |
100 | 509/0.5 | 15.8 | 19.50±0.5 | 0.196 | 358 | ||
120 | 608/0.5 | 17.0 | 20.50±0.5 | 0.164 | 420 |
注:?jiǎn)胃鶎?dǎo)體結構見附表,系列外的結構和規格可按供需雙方商定。 |
